SN100CV P820-5 D4

Manufacturer： NIHON SUPERIOR

Product model：SN100CV P820-5 D4

Description：

SN100CV P820-5 D4 is a low-residue solder paste that minimizes flux residue. It can also reduce porosity caused by the evaporation of the flux. It is also a completely halogen-free solder paste.

Features：

Halogen free

Completely halogen-free, being coexistence of environment with workability

Reducing process

Suppressing flux residue and reducing process

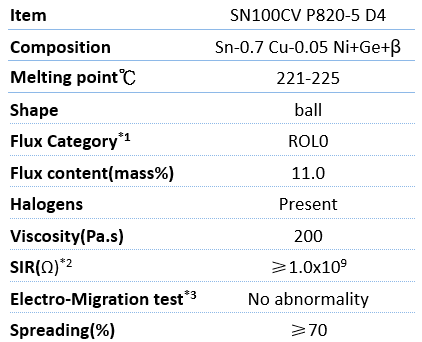

Specification Table：

*1 Flux range (halogen content of rosin flux): ROL0: 0.0%, ROL1: <0.5%

*2 Insulation resistance value: Condition B 85±2℃, relative temperature and humidity 80~90%RH 168 hours

*3 Electromigration experiment: condition B 85±2℃, relative temperature and humidity 80~90%RH 1000 hours
