SN100CV(031)

Manufacturer: NIHON SUPERIOR

Product model:SN100CV(031)

Description:

SN100CV(031) (Sn-Cu-Ni+Ge+β) is a new alloy that reduces the heat load and deteriorates the strength. Although it has no silver, it can maintain its strength in harsh environments. Ensuring continuous solderability, it can also greatly suppress the flux scattering. It is a Pb-free solder wire that can have both good workability and suppression of flux scattering.

Features

High workability


Suppressing the scattering of flux

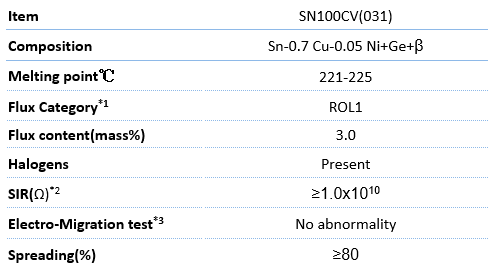

Specification Table



*1 Flux range (halogen content of rosin-based flux): ROL0: 0.0%, ROL1: <0.5%

*2 Insulation resistance value: Condition B 85±2℃, relative temperature and humidity 80~90%RH 168 hours

*3 Electromigration experiment: condition B 85±2℃, relative temperature and humidity 80~90%RH 1000 hours



Wire diameter: 0.3, 0.4, 0.5, 0.6, 0.8, 1.0, 1.2, and 1.6 mm.

Package: 500g/roll, 10 rolls/box (5kg
