SN100C(031)
Manufacturer： NIHON SUPERIOR
Product model：SN100C(031)
Description：
SN100C(031) (Sn-Cu-Ni+Ge) is a general-purpose Pb-free solder wire with excellent workability with fast melting speed, reducing flux scattering and residue. Due to the continuous weldability and scalability, the work efficiency is improved.

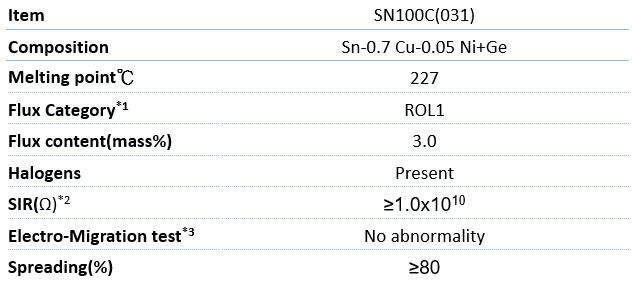

*1 Flux range (halogen content of rosin-based flux): ROL0: 0.0%, ROL1: <0.5%
*2 Insulation resistance value: Condition B 85±2℃at relative temperature and humidity 80~90%RH 168 hours
*3 Electromigration experiment: condition B 85±2℃at relative temperature and humidity 80~90%RH 1000 hours
Wire diameter: 0.3, 0.4, 0.5, 0.6, 0.8, 1.0, 1.2, and 1.6 mm
Package: 500g/roll, 10 rolls/box (5kg)
