Triple Insulated Wire KTW-B/F

Manufacturer： Yoshikura, Japan

Product model： KTW-B/F

Description：

The three-layer insulated wire from Yoshikura, Japan, is suitable for high-frequency transformers and inductor windings. There are two specifications- UL Type B (130℃) and Type F (155℃).

Features：

The first and second layers of the B regulation (130℃) are made of PET resin, and the third layer is made of PA resin
The outer layer of the F regulation (155℃) is covered with insulating material Telflon with excellent durability.
There is no need to remove when soldering with good direct solderability.
Both specifications are made of materials specified in UL No. E353894
Yellow in appearance

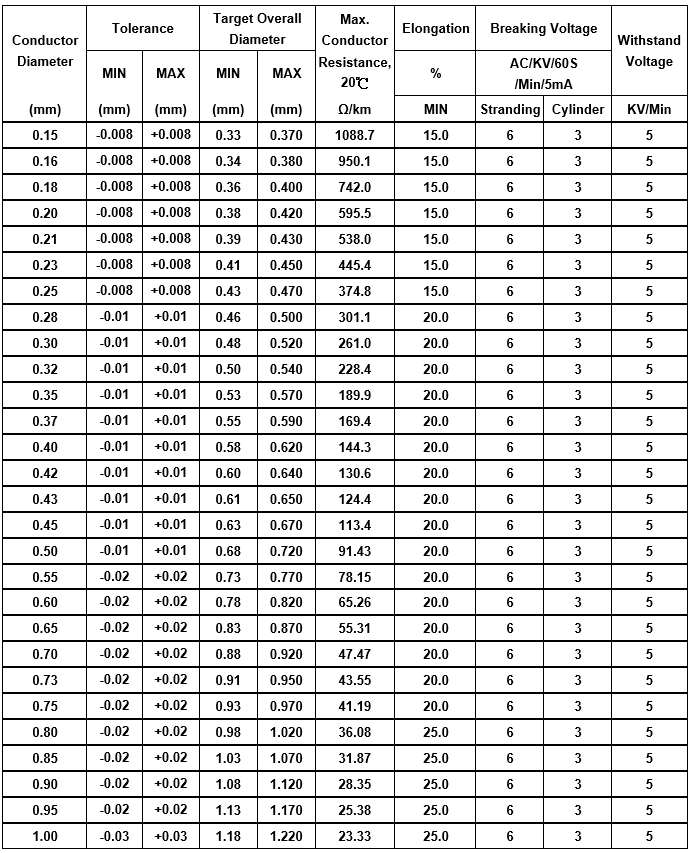

Specification Table：

Package： Sold as a whole shaft, with different lengths depending on the wire diameter.

The allowable delivery length is +5% - 0%

SGS Report：

K TW-B
K TW-F
