2022.03.03 Take ESG to the Next Level, Starting From Solder...

Related Products

Lead-free Solder

Webinar FAQ

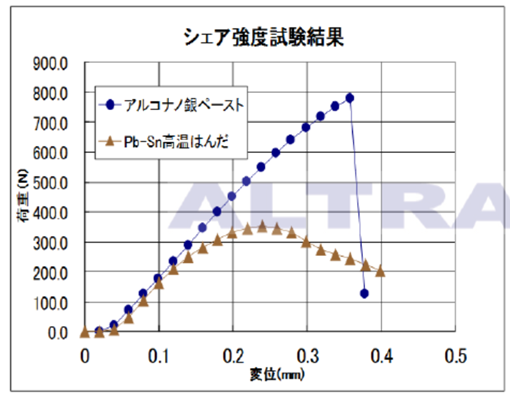

Has the soldering strength of nanosilver been verifired?

With joint area 20mm, soldering strength is 240MPa (two times the strength of high-temp solder)

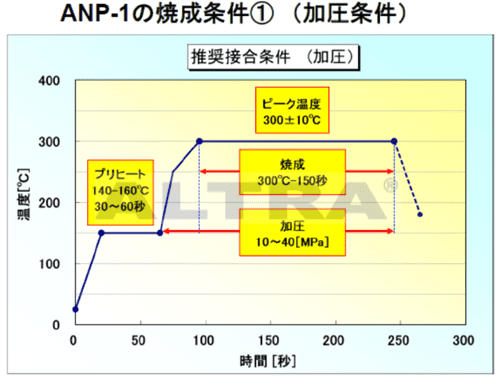

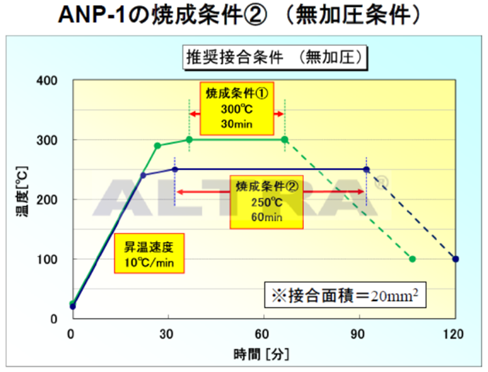

Suggestions to conductive silver paste's soldering temperature and time length

It depends on pressurized or not. If pressurized, it takes about 150 seconds under 300 degrees C; if not, it takes 60 minutes under 250 degrees C, and 30 minutes unnder 300 degrees C.




Which are the companies applying SN100C?

Since Panasonic used SN100C on cameras in 1999, SN100C started mass production. The application markets now includes semiconductor and automobile, companies applying SN100C includes Japanese companies such as TDK, Hitachi, and Toshiba, as well as international companies as Delphi Automotive and Flex.
